Elastic Net 回归

图书

继续使用上节lasso回归里的样本数据，用弹性网络回归进行拟合

	A
1	[[1.1,1.1],[1.4,1.5],[1.7,1.8],[1.7,1.7],[1.8,1.9],[1.8,1.8],[1.9,1.8],[2.0,2.1],[2.3,2.4],[2.4,2.5]]
2	[16.3,16.8,19.2,18,19.5,20.9,21.1,20.9,20.3,22]
3	=elasticnet(A1,A2,0.01,10000,0.9,0.1)
4	=elasticnet(A1,A3)
5	=canvas()
6	=A5.plot("NumericAxis","name":"y_pre","autoCalcValueRange":false,"autoRangeFromZero":false,"maxValue":25,"minValue":15,"title":"prediction data")
7	=A5.plot("NumericAxis","name":"y","location":2,"autoCalcValueRange":false,"autoRangeFromZero":false,"maxValue":25,"minValue":15,"title":"observation data","titleAngle":270)
8	=A5.plot("Dot","lineWeight":0,"lineColor":-16776961,"markerWeight":1,"axis1":"y_pre","data1":A4.conj(),"axis2":"y","data2": A2)
9	=to(15:25)
10	=A5.plot("Line","markerStyle":0,"axis1":"y_pre","data1":A9,"axis2":"y", "data2":A9)
11	=A5.draw(600,600)

A1 输入数据x

A2输入数据y

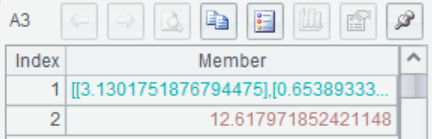

A3用elasticnet拟合数据，0.01 表示学习率，10000 表示迭代次数，0.9表示L1系数，0.1 表示 L2系数，返回模型信息。

A3(1)系数矩阵

A3(2)截距

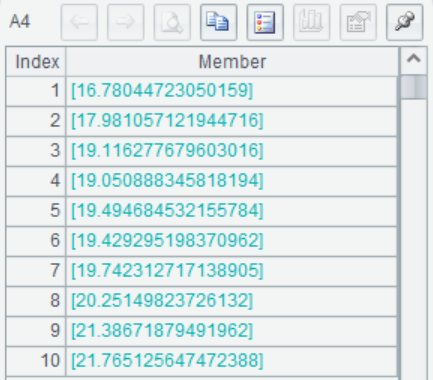

A4 用A3拟合的模型在A1上进行预测，返回预测结果

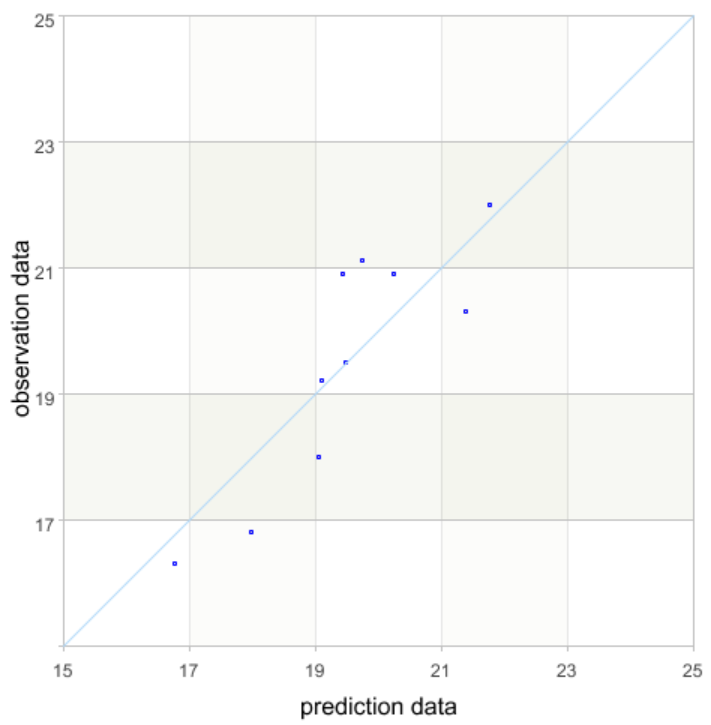

A5-A11 画图对比预测值和真实值，评估模型效果。横轴表示每个样本数据的预测值，纵轴表示观测数据真实值。如果所有点都能在对角线附近均匀分布，则方程的拟合值与原值差异很小，方程的拟合效果就好。如效果不理想可通过调节学习率和迭代次数进行优化。

A5生成画布

A6绘制横轴，预测数据

A7绘制纵轴，观测数据真实值

A8绘制点图元，横轴取预测值，纵轴取真实值

A9取[15,25]的固定区间

A10绘制线图元，y=x

A11画图
